Sheen edgelit Downlight 8“- UD3205-B1M

Thermal conductive plastic, excellent heat sinking.
5VA flame rating for J-Box.
Single CCT 3000K,4000K and 6000K are available.

UD3205-B1M

18W 1400lm 78lm/W CRI＞80 110°

Code	UD3205-B1M
Power	18W
Input	220-240Vac 50/60Hz
Color Temp	4000K
Lumen@4000K	1400lm

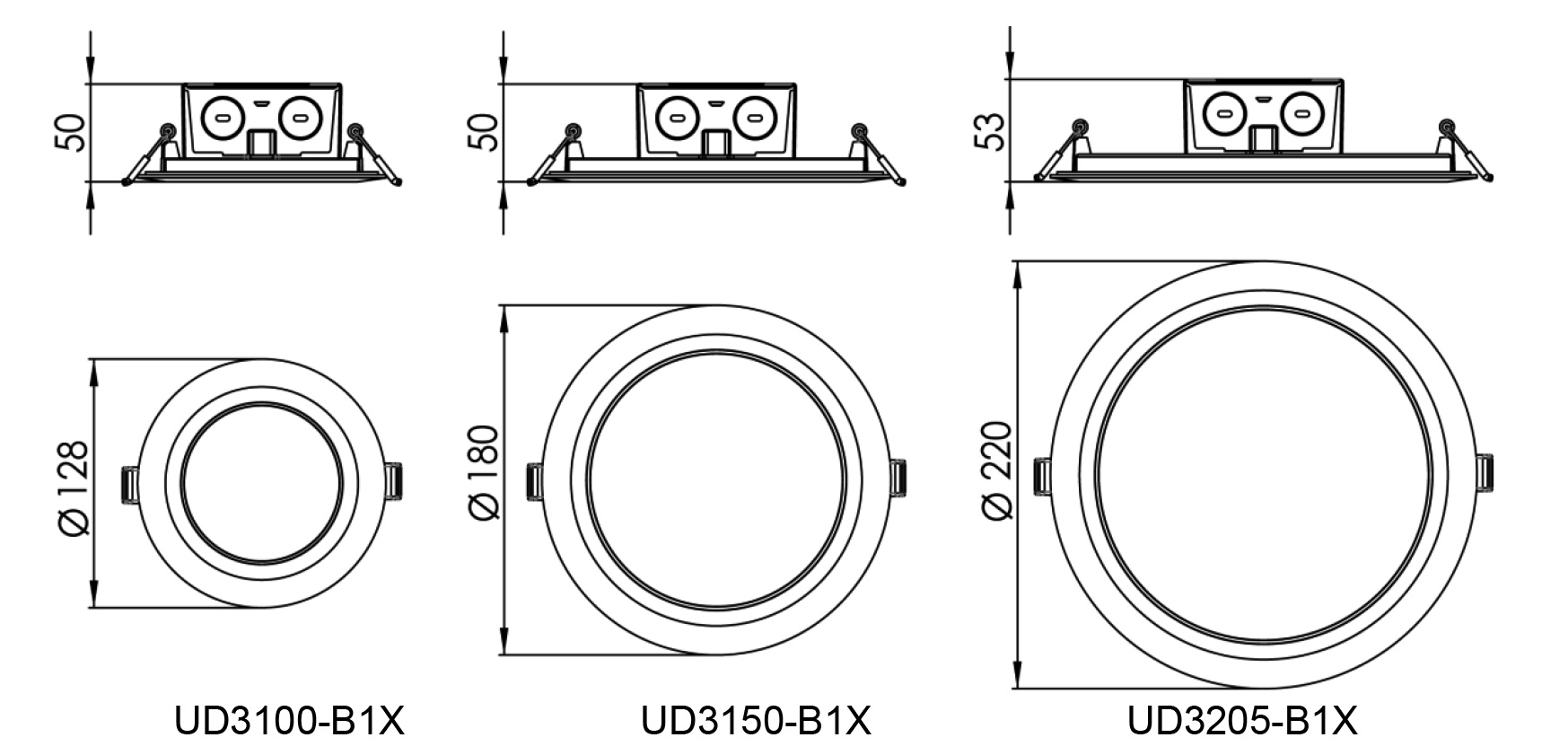

Cutout(mm)	Φ200-210mm
IK Rating	03
CRI	＞80
Beam Angle	110°
Driver	Internal non-isolated driver

Recessed installation.

Class Ⅱ built-in driver with triac dimming.

5VA flame rating for J-Box.

Direct wire, no recessed can be required.

Whole series available from 4", 6".

L70 to 85000hrs.

Driver built in, integrated design.
