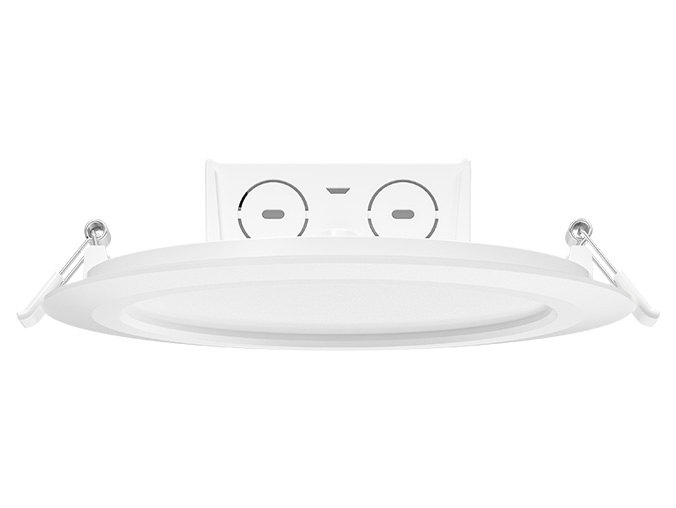

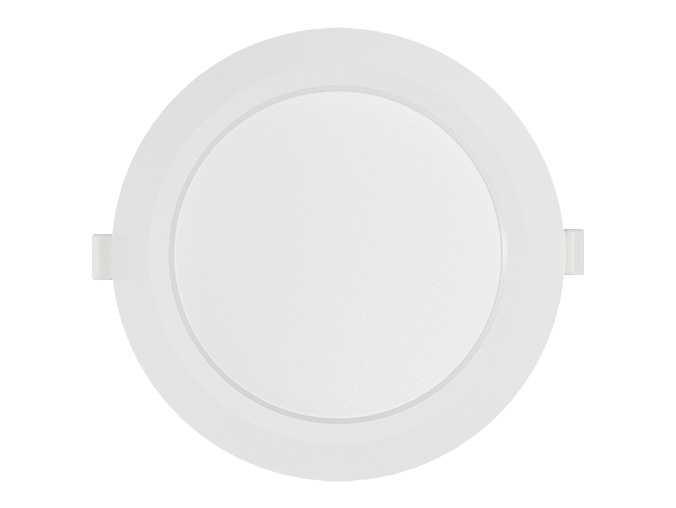

Sheen edgelit Downlight 4"- UD3100-B1M

Thermal conductive plastic, excellent heat sinking.

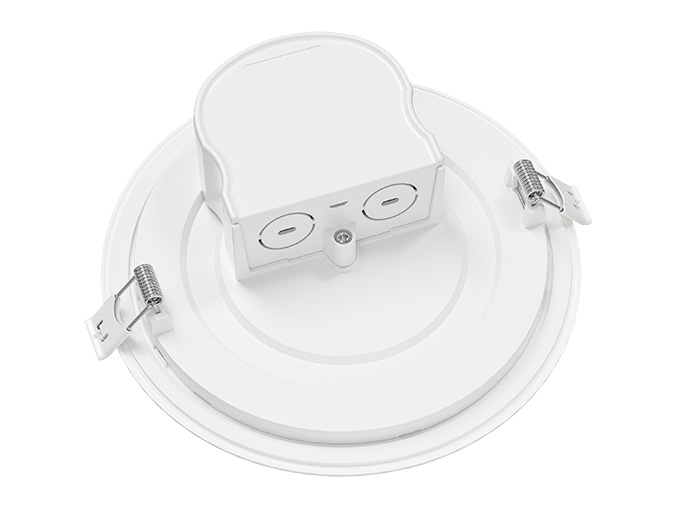

5VA flame rating for J-Box.
Single CCT 3000K,4000K and 6000K are available.

UD3100-B1M

8W 550lm 69lm/W CRI＞80 110°

Code	UD3100-B1M
Power	8W
Input	220-240Vac 50/60Hz
Color Temp	4000K
Lumen@4000K	550lm
Cutout(mm)	Φ105-120mm
IK Rating	03
CRI	＞80
Beam Angle	110°
Driver	Internal non-isolated driver

Recessed installation.

Class Ⅱ built-in driver with triac dimming.

5VA flame rating for J-Box.

Direct wire, no recessed can be required.

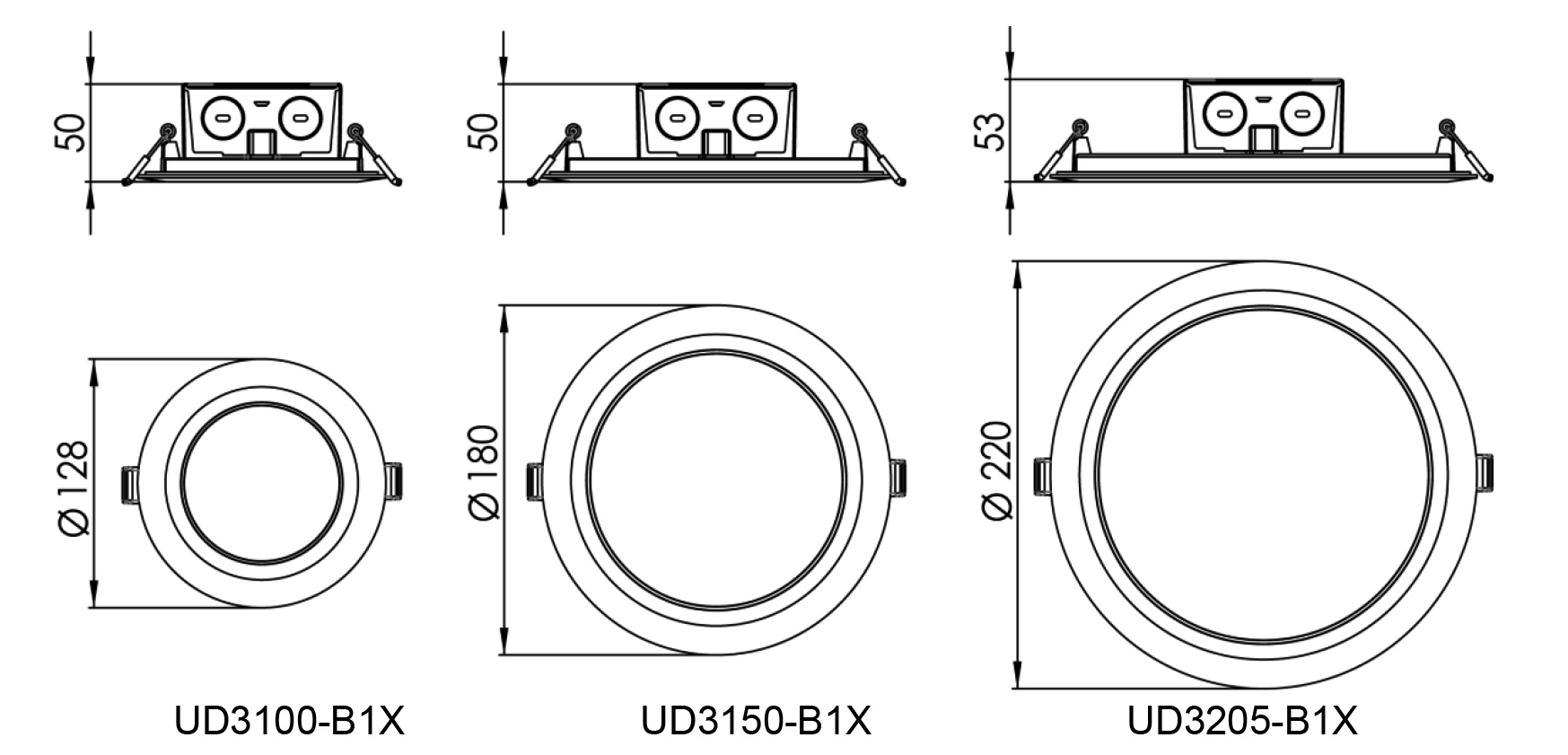

Whole series available from 4", 6".

L70 to 85000hrs.

Driver built in, integrated design.
