Rainbow Ceiling Light - CD0220

PA thermal conductive plastic housing, V-0 flame rating, Single CCT or 3CCT for option, Triac, dual power Support, IP44
12W 840lm 70lm/W CRI>80 110°
Code CD0220-A
Power 18W
Input 220-240Vac 50/60Hz
Color Temp 4000K
Lumen@4000K 1350lm
Cutout(mm) Φ120-200mm
IP Rating IP44
IK Rating IK03
CRI >80
Beam Angle 110°
Size Φ220*21.5mm
Driver Internal non-isolated driver
Code CD0220-A-TW-DP
Power 12W/ 18W
Input 220-240Vac 50/60Hz
Color Temp 3CCT
Lumen@4000K 1200lm/ 1710lm
Cutout(mm) Φ120-200mm
IP Rating IP44
IK Rating IK03
CRI >80
Beam Angle 110°
Size Φ220*21.5mm
Driver Internal non-isolated driver
Code CD2222-A-TW-DP
Power 12W/ 18W
Input 220-240Vac 50/60Hz
Color Temp 3CCT
Lumen@4000K 1200lm/ 1710lm
Cutout(mm) Φ120-200mm
IP Rating IP44
IK Rating IK03
CRI >80
Beam Angle 110°
Size 220*220*21.5mm
Driver Internal non-isolated driver
  Whole series available from Φ180mm,Φ220mm, Φ300mm.

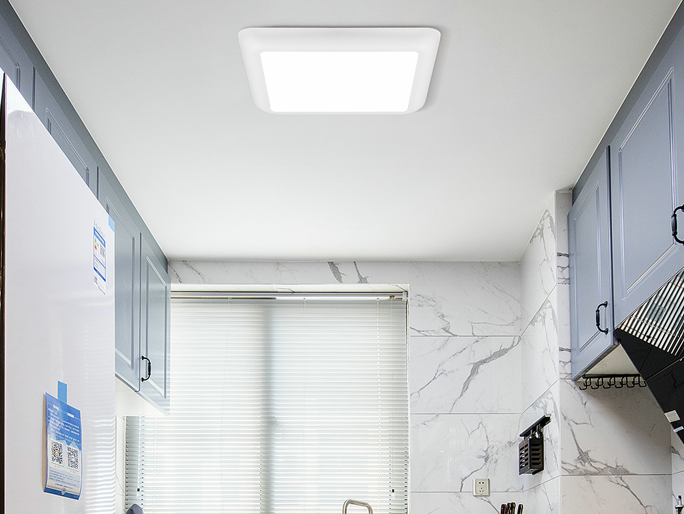

  Round or Square shaped cover available.
  Single CCT or 3CCT for option.
  Triac, dual power Support.
  PA thermal conductive plastic housing, V-0 flame rating.
  Surface, recessed, wall mounted installation for option.
  IP44, cutout for recessed installation can be adjustable.
  Sensor version for option for CD0300.
  Driver built-in, integrated design.
  L70 t0 85000hrs.
