LED Down Lights

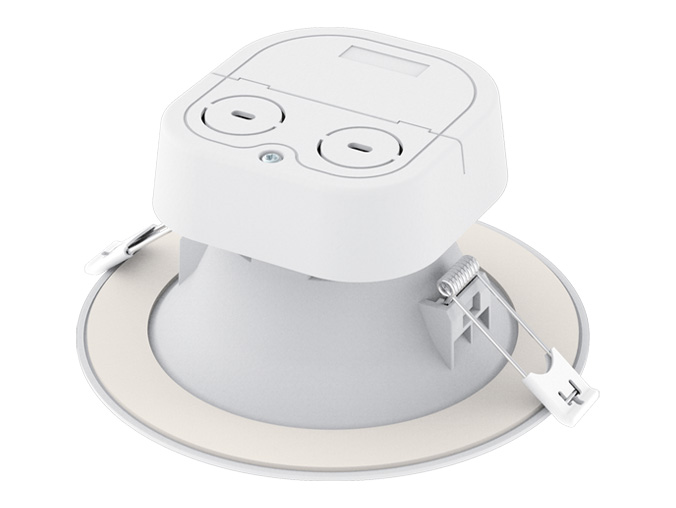

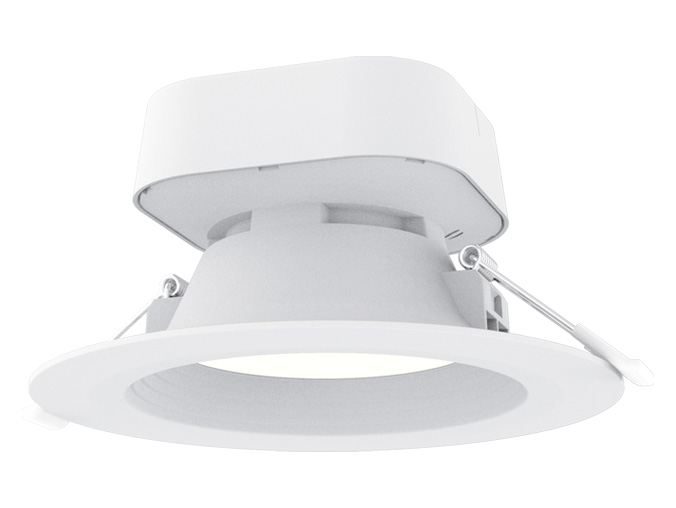

Mien backlit Downlight 4“- UD0100-B1M

Thermal conductive plastic coated aluminum housing.
5VA flame rating for J-Box.
Single CCT 3000K,4000K and 6000K are available.
7.5W 525lm 70lm/W CRI>80 90°
Code UD0100-B1M
Power 7.5W
Input 220-240Vac 50/60Hz
Color Temp 4000K
Lumen@4000K 525lm
Cutout(mm) Φ105-120mm
IK Rating 06
CRI >80
Beam Angle 90°
Driver Internal non-isolated driver

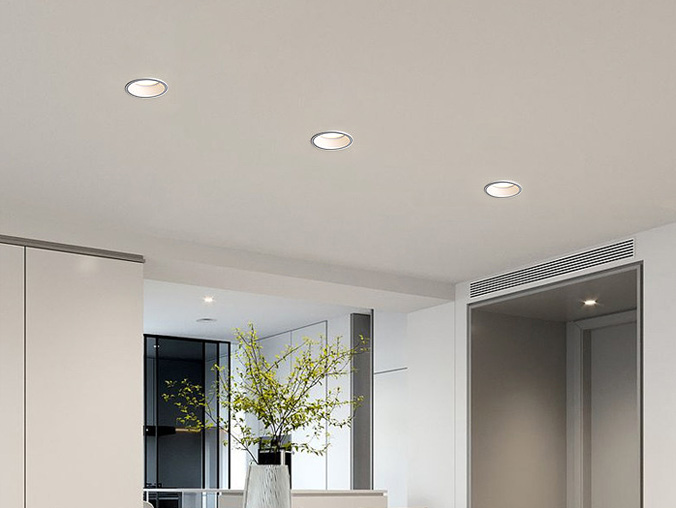

  Recessed installation.
  Class Ⅱ built-in driver with triac dimming.
  5VA flame rating for J-Box.
  Direct wire, no recessed can be required.
  Whole series available from 4", 6".
  L70 to 85000hrs.
  Driver built in, integrated design.
