Qualified Emergency lighting must comply with international standards including IEC 60598 for luminaire safety, EN 60529 for ingress protection, and LM80/TM21 for LED lifetime projection. Critical parameters include minimum 3-hour emergency discharge duration, self-test or DALI test modes, LiFePO4 battery technology, and protection class II design. IMIGY Lighting offers certified solutions such as the Woyager Emergency Blade Exit Sign and the Guard Fit Emergency Downlight, both engineered to meet these rigorous requirements.
Emergency lighting is a non-negotiable safety system in commercial and public buildings. Standards define the minimum performance for brightness, battery backup, ingress protection, and lifespan. The Woyager Blade Exit Sign delivers a 30-meter viewing distance with a slim PC housing, while the Guard Fit Emergency Downlight provides IP65-rated protection with interchangeable round and oval lens options. Whether you need a Square emergency light or a Round emergency light, understanding the standards behind these products ensures compliance and occupant safety.
Qualified Emergency light fixture products must pass several international benchmarks. The IEC 60598 series governs general luminaire safety, while EN 60529 specifies the IP rating for dust and water ingress. For LED-specific reliability, the IES LM80 standard measures lumen maintenance over time, and TM21 projects the L70 and L90 lifespan. Additionally, protection class II (double insulation) is a common requirement for emergency luminaries, eliminating the need for an earth connection.

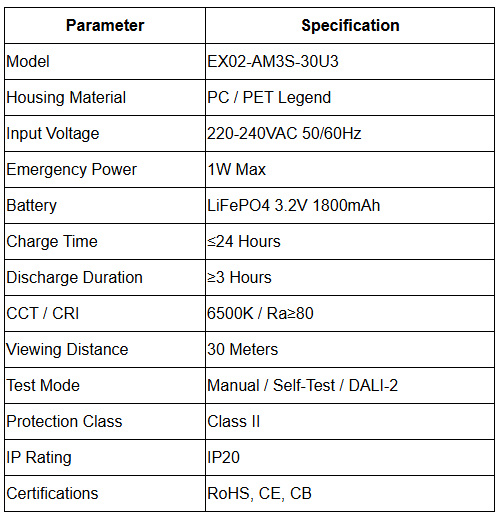

The Woyager Blade Exit Sign (model EX02-AM3S-30U3) is a certified LED emergency light designed for clear egress path marking. Its PC housing with PET legend provides durability, while the LiFePO4 3.2V 1800mAh battery ensures ≥3 hours of emergency discharge. With a 30-meter viewing distance, it is ideal for renovation projects. The fixture supports ceiling, recessed, suspension, track, wall, and flag mounting methods — all without requiring the word "seamless" to describe installation.

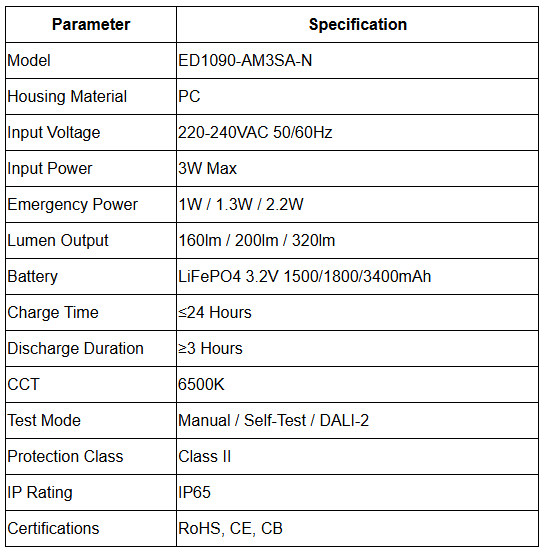

The Guard Fit (model ED1090-AM3SA-N) is an IP65-rated Emergency light fixture with a modular design and compact surface profile. Its high-end optical design allows greater spacing between fixtures, reducing total installation cost. The fixture supports both surface-mounted and recessed installation — never described as "seamless." It comes with interchangeable round and oval lenses, making it suitable for both open areas (round lens) and corridors (oval lens).
Selecting the correct Emergency lighting depends on the installation environment. For exit pathways and escape routes, a Square emergency light such as the Woyager Blade Exit Sign provides clear directional guidance with its 30-meter visibility. For general area illumination during power failure, a Round emergency light like the Guard Fit Downlight delivers wide-area coverage. The Guard Fit's round lens suits open-plan offices, while its oval lens focuses light along corridors. Both products support Self-Test and DALI-2 modes, ensuring automated compliance without manual intervention.
When specifying an LED emergency light, verify the following:
· Compliance with IEC 60598, EN 60529, and LM80/TM21
· Battery type: LiFePO4 recommended for reliability and cycle life
· Minimum discharge duration: ≥3 hours
· Test mode: Self-Test or DALI-2 for automated reporting
· Protection class: Class II for double insulation
· IP rating suitable for the environment (IP20 for indoor, IP65 for wet areas)
· Certifications: RoHS, CE, CB
Q: What is the minimum emergency discharge time required by standards?
A: Most international standards require a minimum of 3 hours of emergency operation to allow safe evacuation and maintenance access.
Q: Why is LiFePO4 battery technology preferred for emergency lighting?
A: LiFePO4 lithium batteries offer improved energy consumption, longer cycle life, and greater reliability compared to traditional Ni-Cd or lead-acid batteries.
Q: What is the difference between Self-Test and DALI-2 test modes?
A: Self-Test automatically runs periodic function and duration tests. DALI-2 enables centralized control and monitoring through a building management system.
Q: Can the Guard Fit Emergency Downlight be used in bathrooms or kitchens?
A: Yes, with an IP65 rating, the Guard Fit is suitable for wet and dusty environments, including bathrooms, kitchens, and outdoor covered areas.
Q: What viewing distance is required for exit signs?
A: The Woyager Blade Exit Sign offers a 30-meter viewing distance, meeting the requirements for most commercial and public building applications.
