Quick Answer

When choosing the right down lights for ceiling for your commercial project, size matters. IMIGY Lighting offers a complete range from 4” to 10” of down lights for ceiling, covering different cutout sizes, power levels, and efficacy ratings for retail stores, hotels, offices, and industrial warehouses. Our product line includes Explorer, Cyclone, Phoenix, and Grace series, each with a unique positioning — from the high-protection Explorer to the high-efficacy Phoenix Slim — ensuring you find the perfect down light ceiling match for your project. As a professional down light led manufacturer, all products use quality heat sinking materials for stable long-term performance. We also offer down panel light series for different lighting needs.

Key Takeaways

· IMIGY offers a complete range from 4” to 10” of down lights for ceiling, adapting to residential and commercial spaces

· Our down light led series includes Explorer, Cyclone, Phoenix, and Grace product lines for different needs

· Cyclone series is a reliable down light ceiling choice with aluminum housing, supports single CCT or 3CCT

· As a down lights for ceiling manufacturer, our Explorer series features IP64 rating for damp environments

· Grace and UFO series are quality down panel light options with thermal conductive housing for lightweight design

Product Series Overview

1. Explorer Downlight Series

The Explorer series is our versatile down lights for ceiling product line. Features aluminum housing for excellent heat sinking with IP64 protection and IK06 impact rating. Uses external isolated driver, L70 lifespan 85,000 hours. Various ring accessories including round, square, and glass module options. Anti-glare version available.

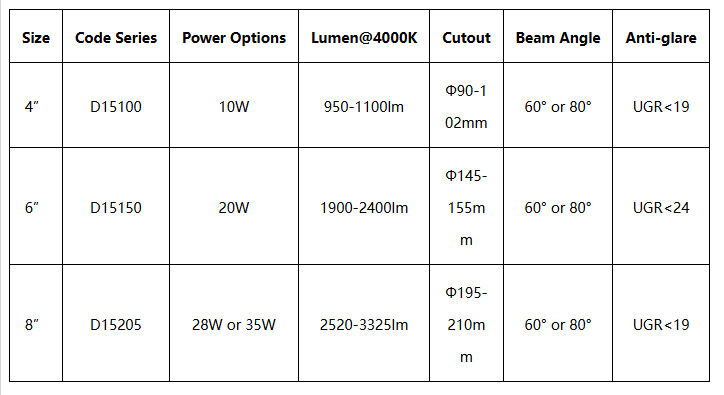

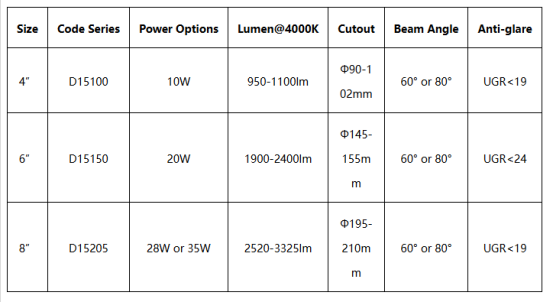

Full Series Parameters:

2. Cyclone Downlight Series

The Cyclone series is an economical down light ceiling choice. Features aluminum housing for excellent heat sinking. Supports 3000K, 4000K, and 6000K CCT switching. External isolated driver for variable dimming methods. IP20 rating, IK07 impact.

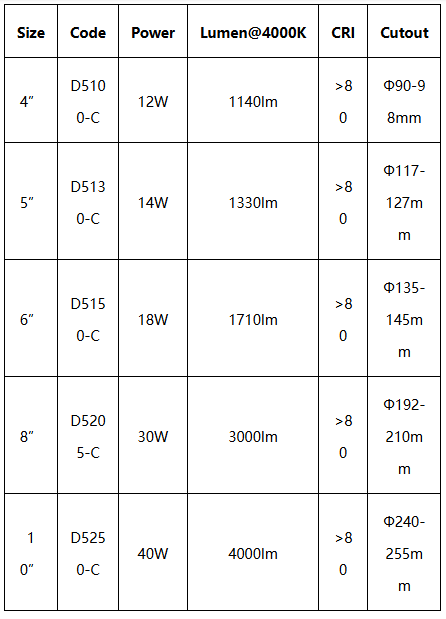

Full Series Parameters:

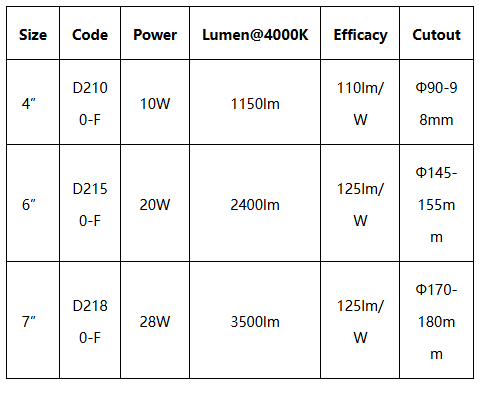

3. Phoenix Slim Downlight Series

The Phoenix Slim series is a high-efficacy down light led product. Features aluminum housing with slim design. Efficacy up to 125lm/W. Supports 3000K, 4000K, and 5700K CCT switching. IP64 protection. External isolated driver. Supports recessed and surface mounting.

Panel Light Products

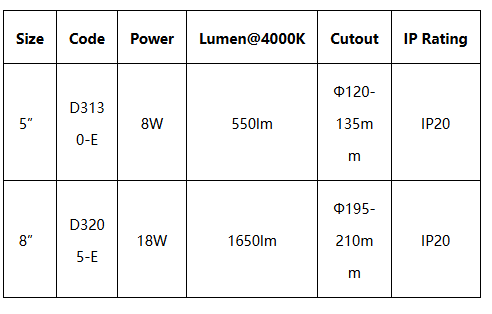

4. UFO Downlight Series

The UFO series is an innovative down panel light with thermal conductive PA housing, V-0 flame rating. Back-lit design without LGP means no yellowing risk. Beam angle 110°, built-in driver.

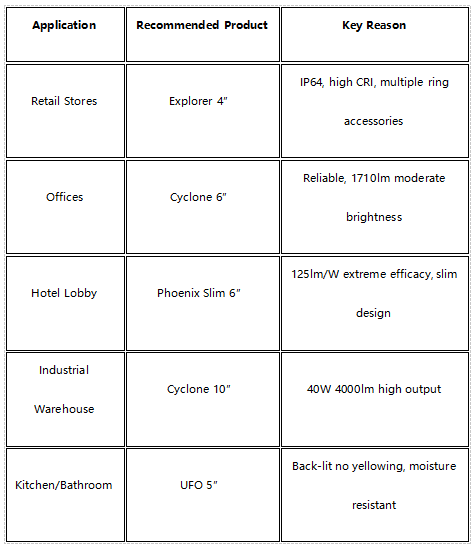

Application Guide

Procurement Checklist

When evaluating down lights for ceiling, consider:

· Size: 4” for compact spaces, 6” universal, 8-10” for large commercial spaces

· Protection Rating: IP20 for dry areas, IP64+ for damp environments

· Efficacy: Phoenix Slim series up to 125lm/W for significant energy savings

· Heat Sinking: Aluminum housing ensures stable long-term performance

· Driver Type: External isolated for maintenance flexibility, built-in for integration

FAQ

Q1: As a Down lights for ceiling supplier, what sizes do you offer? We offer complete sizes from 4” to 10” covering cutouts 90mm to 255mm. 4” for small spaces, 6” for commercial standard, 8-10” for large spaces.

Q2: How to choose the right Down light ceiling size for my project? Based on area: 10-15m² → 4-5”, 15-30m² → 6”, 30m²+ → 8-10”. Also consider ceiling height and lighting requirements.

Q3: How to choose Down light led driver type? External isolated driver for maintenance and dimming flexibility. Built-in driver for integration and easy installation.

Q4: What cutout sizes for Down lights ceiling? We offer cutout sizes from Φ90mm to Φ255mm. 4” and 6” are the most common commercial specifications.

Q5: What lifespan for Down panel light? Our products offer L70 lifespan from 59,000 to 100,000 hours. Based on 8 hours daily use, this equals 20 to 34 years.

As a down lights for ceiling manufacturer offering complete sizes from 4” to 10”, IMIGY Lighting’s Explorer, Cyclone, Phoenix Slim, and UFO series cover different power levels, protection ratings, and installation needs for flexible commercial lighting solutions. Contact us for more product information and technical support.
