Quick Answer

Reliable down lights ceiling require key features: high protection rating for stable long-term operation, long lifespan for reduced maintenance costs, aluminum housing for excellent heat sinking, and reliable driver configuration for flicker-free lighting. IMIGY Lighting’s down light ceiling product line uses quality aluminum housing with IP64 protection, IK06 impact rating, and L70 lifespan up to 85,000 hours, ensuring lasting reliable lighting for your commercial spaces. Whether you need a moisture-resistant down light led for hotel corridors or a high-efficacy down lights ceiling for retail stores, our products meet strict commercial lighting standards. As a professional down lights for ceiling manufacturer, we also offer the Grace series down panel light option for balanced lightweight and heat sinking.

Key Takeaways

· IMIGY’s down light ceiling products feature IP64 protection and IK06 impact rating, ideal for damp environments

· Our down light led series L70 lifespan reaches 85,000 hours, over 29 years based on 8 hours daily use

· Explorer series is a quality down lights ceiling representative with aluminum housing and 3CCT switching

· Phoenix series as a reliable down lights for ceiling choice supports recessed and surface mounting

· Grace series is an economical down panel light with thermal conductive plastic-coated aluminum housing, V-0 flame rating

Product Series Overview

1. Explorer Downlight A Series

The Explorer A series is our reliable down light ceiling product. Features aluminum housing for excellent heat sinking with IP64 protection and IK06 impact rating. Uses external isolated driver, supports 3000K, 4000K, and 6000K CCT switching. Various ring accessories including round, square, and glass module options. Reflector + lens version achieves UGR < 19. L70 lifespan 85,000 hours.

4” Model: D15100-A-TW – 10W, 950lm, 95lm/W, CRI>80, 60°, IP64, IK06, cutout Φ90-102mm.

6” Model: D15150-A-TW – 20W, 1900lm, 95lm/W, cutout Φ145-155mm.

8” Models: D15205-A-TW2 (28W, 2520lm) / D15205-A-TW (35W, 3325lm), cutout Φ195-210mm.

2. Explorer Downlight B Series

The Explorer B series is also a high-reliability down light led product. Features reflector + diffuser design with 80° beam angle for higher efficacy. IP64 protection, IK06 impact rating, L70 lifespan 85,000 hours.

4” Model: D15100-B-TW – 10W, 1100lm, 110lm/W, 80°, cutout Φ90-102mm, UGR<24.

Other Reliable Downlight Products

3. Grace Downlight Series

The Grace series is a down lights ceiling with thermal conductive plastic-coated aluminum housing, V-0 flame rating. Built-in non-isolated driver, integrated design, optional Triac dimming and plastic widened cover. L70 lifespan 85,000 hours, available in 3, 4, 5, 6, 8-inch sizes.

5” Models: D0130-G-2 (12W, 1050lm) / D0130-G (14W, 1300lm), 90°, cutout Φ120-130mm.

8” Models: D0205-G-2 (20W, 1900lm) / D0205-G (25W, 2350lm), cutout Φ195-210mm.

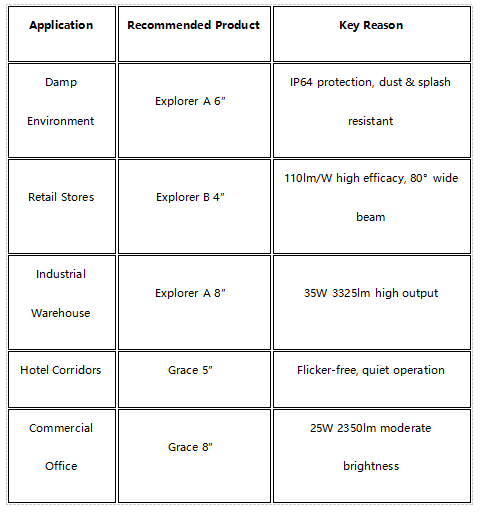

Application Guide

Procurement Checklist

When evaluating reliable down light led, consider:

· Protection Rating: Explorer series IP64 for damp environments, Grace series IP20 for dry indoor areas

· Lifespan Design: L70 85,000 hours means maintaining 70%+ lumen output long-term

· Heat Sinking: Aluminum housing for excellent heat dissipation

· Anti-glare: Reflector + lens UGR<19, reflector + diffuser UGR<24

· Warranty: IMIGY offers 5-year warranty for product reliability

FAQ

Q1: As a Down light ceiling supplier, how do you ensure long-term reliability? We use IP64 protection for dust and splash resistance, aluminum housing for excellent cooling, and L70 lifespan up to 85,000 hours. All products pass strict factory testing.

Q2: How does Down light led protection rating affect lifespan? IP64 protection prevents dust and water ingress, protecting internal electronic components. Explorer series performs particularly stably in damp environments.

Q3: How does Down lights ceiling heat sinking ensure reliability? Aluminum housing quickly conducts heat from LED chips, reducing junction temperature and slowing lumen depreciation.

Q4: What are the ring accessory options for Down lights for ceiling? Explorer series offers round, square, and glass module ring accessories for flexible decoration matching.

Q5: How does Down panel light UGR anti-glare design improve experience? UGR<19 anti-glare version reduces direct glare for improved visual comfort, ideal for offices and commercial display spaces.

As a manufacturer focused on reliable down light ceiling products, IMIGY Lighting’s Explorer series features IP64 protection and 85,000-hour L70 lifespan for your commercial projects. We also offer Grace series down lights for ceiling products covering different budgets and performance requirements. Contact us for more product information and technical support.
