Quick Answer

If you are looking for a high-efficacy down light LED for your commercial project,IMIGY Lighting delivers efficacy up to 125lm/W. Our down light LED products feature aluminum housing for excellent heat sinking, ensuring stable light output and extended LED lifespan. From the efficacy-focused Phoenix Slim series to the high-protection Explorer series, our down light ceiling product line covers 4” to 10” sizes for retail stores, offices, and industrial warehouses. As a professional down lights for ceiling manufacturer, we strictly control every production process to ensure each product meets its stated efficacy and performance parameters.

Key Takeaways

· IMIGY’s down light LED products achieve efficacy up to 125lm/W, the Phoenix Slim series is the flagship for extreme efficacy

· Aluminum housing provides excellent heat sinking, keeping high-efficacy down light ceiling products stable during long operation

· Cyclone series is a reliable down lights ceiling choice with up to 100lm/W efficacy

· As a down lights for ceiling manufacturer, we offer sizes from 3.5” to 10”

· Grace and Explorer series are quality down panel light options balancing efficacy and protection

Product Series Overview

1. Phoenix Slim Downlight Series

The Phoenix Slim series is our flagship high-efficacy down light LED product. Features aluminum housing with slim, stylish design. Efficacy up to 125lm/W. Supports 3000K, 4000K, and 5700K CCT switching. IP64 protection, IK06 impact rating. External isolated driver, supports recessed and surface mounting. L70 lifespan up to 100,000 hours.

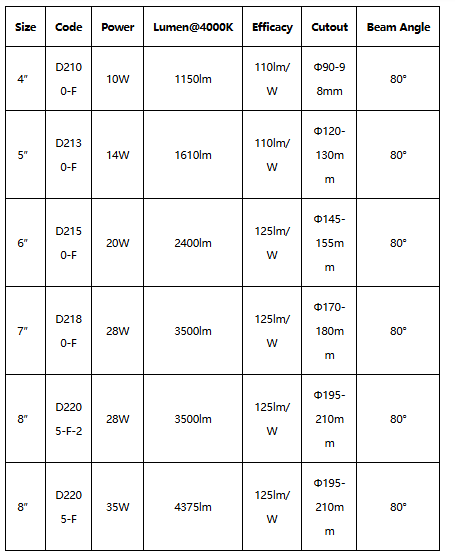

Full Series Parameters:

2. Cyclone Downlight Series

The Cyclone series is an economical down light ceiling product. Features aluminum housing for excellent heat sinking. Supports 3000K, 4000K, and 6000K CCT switching. External isolated driver. L70 lifespan 59,000 hours, IP20 rating, IK07 impact. Variable dimming by changing drivers.

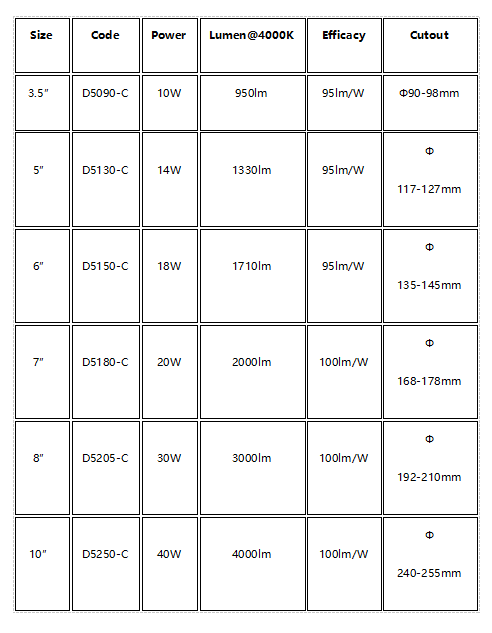

Full Series Parameters:

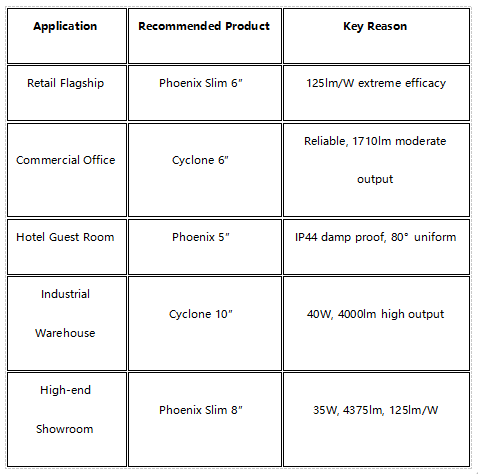

Application Guide

Procurement Checklist

When evaluating high-efficacy down light LED, consider:

· Efficacy: Phoenix Slim series up to 125lm/W, saving 30% energy vs traditional downlights

· Heat Sinking: Aluminum housing ensures stable long-term performance

· Protection: IP20 for dry areas, IP44+ for damp environments

· Warranty: Phoenix Slim series offers 5-year warranty

FAQ

Q1: As a Down light LED supplier, what is your maximum efficacy? Our Phoenix Slim series achieves up to 125lm/W, with the 6” 20W version delivering 2400lm and the 8” 35W version delivering 4375lm.

Q2: How to reduce costs with high-efficacy Down light ceiling? Replacing traditional 20W downlights with Phoenix Slim 6” at equivalent brightness reduces power consumption by approximately 30%, saving significant electricity costs annually.

Q3: How does heat sinking affect Down lights ceiling lifespan? Aluminum housing effectively conducts heat from LED chips, reducing junction temperature. Our Phoenix Slim series achieves L70 lifespan up to 100,000 hours.

Q4: What installation types for Down lights for ceiling? Phoenix Slim series supports both recessed and surface mounting for flexible installation options.

Q5: What anti-glare features for Down panel light? Phoenix Slim series uses an 80° beam angle design with aluminum housing for comfortable visual experience while maintaining high efficacy.

As a professional high-efficacy down light LED manufacturer, IMIGY Lighting’s Phoenix Slim series delivers 125lm/W with aluminum cooling for your commercial projects. We also offer Cyclone and Phoenix series down lights for ceiling products covering different budgets and performance requirements. Contact us for more product information and technical support.
