Quick Answer

When choosing the right down light ceiling, focus on cutout size, heat sinking material, driver design, and application environment. IMIGY Lighting’s professional down light ceiling product line covers cutouts from 90mm to 255mm across Cyclone, Explorer, Grace, Miracle, and UFO series. Whether you need a high-efficacy down light led or a high-protection down lights ceiling for outdoor use, we have matching solutions. As a professional down lights for ceiling manufacturer, all products use quality heat sinking materials for stable long-term performance. We also offer ultra-slim down panel light options for ceiling installation.

Key Takeaways

· IMIGY’s down light ceiling series offers cutouts from 90mm to 255mm, covering residential to commercial spaces

· Our down light led products offer 4W to 40W power, with efficacy up to 125lm/W

· For high protection needs, Explorer series features IP64 rating for damp environment down lights ceiling

· As down lights for ceiling manufacturer, we offer 3” to 10” sizes for flexible ceiling matching

· Grace and UFO series are quality down panel light options with thermal conductive plastic housing

Product Series Overview

1. Cyclone Downlight Series

The Cyclone series features aluminum housing for excellent heat sinking, a classic down light ceiling product. Supports 3000K, 4000K, and 6000K CCT switching with external isolated driver for variable dimming. L70 lifespan 59,000 hours, IP20 rating, IK07 impact.

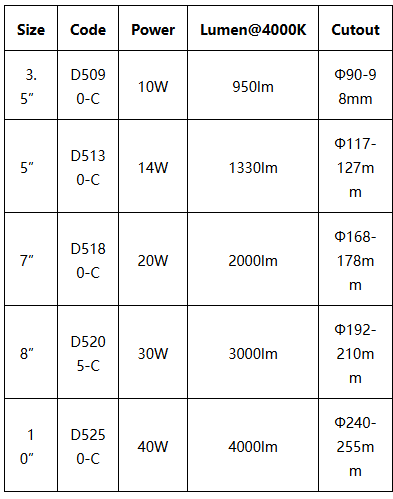

Full Series Parameters:

2. Grace Downlight Series

The Grace series is a stable down light led with thermal conductive plastic-coated aluminum housing, V-0 flame rating. Built-in non-isolated driver, optional Triac dimming and plastic widened cover. L70 lifespan 85,000 hours, available in 3, 4, 5, 6, 8-inch sizes.

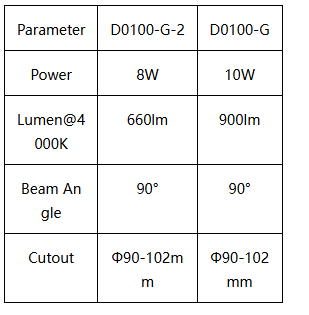

4” Model Parameters:

3. Miracle Downlight Series

The Miracle series is a built-in driver, flicker-free down lights ceiling product. Features thermal conductive plastic-coated aluminum housing with black housing option. Supports 3000K, 4000K, and 6000K CCT switching. IP44 rating, L70 lifespan 85,000 hours.

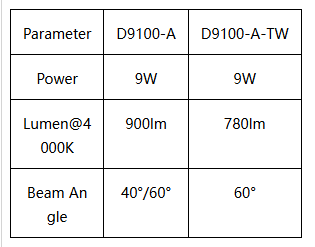

4” Model Parameters:

Panel Light & Ultra-Slim Products

4. UFO Downlight Series

The UFO series is an innovative down panel light with thermal conductive PA housing, V-0 flame rating. Back-lit design without LGP means no yellowing risk. Beam angle 110°, built-in non-isolated driver. Available in 3, 4, 5, 6, 8, 9-inch and square versions.

6” Model: D3150-E – 12W, 930lm, 78lm/W, CRI>80, cutout Φ145-160mm, IP20.

9” Model: D3225-E – 18W, 1900lm, cutout Φ220-235mm.

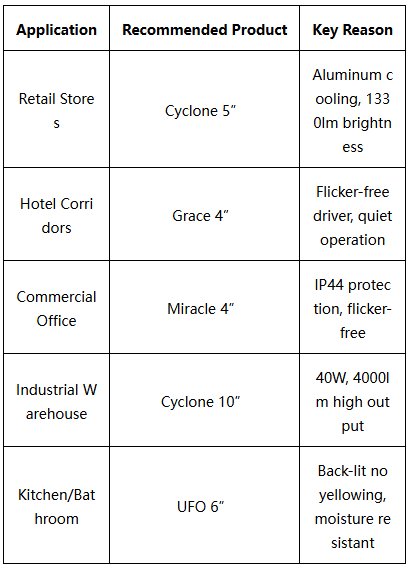

Application Guide

FAQ

Q1: As a Down light ceiling supplier, what cutout sizes do you offer?
We offer 6 sizes from 3.5” to 10”, minimum 90mm for compact ceilings, maximum 255mm for large commercial spaces, with efficacy ranges matching each power level.

Q2: How does Down light led beam angle affect lighting?
90° for even flood lighting suitable for corridors, 60° for accent lighting, 40° for narrow beam effects. Miracle series offers 40° and 60° options.

Q3: What protection ratings for Down lights ceiling?
IP20 for dry indoor areas like offices (Cyclone series). IP44+ for damp environments like kitchens (Miracle series). IP64 for outdoor areas (Explorer series).

Q4: What driver types for Down lights for ceiling?
External isolated driver for maintenance and dimming flexibility (Cyclone series). Built-in driver for integrated design (Grace series).

Q5: What lifespan for Down panel light?
Our products offer L70 lifespan from 59,000 to 85,000 hours. UFO series back-lit design means no yellowing risk for long-term stable light quality.

As a professional down light ceiling manufacturer, IMIGY Lighting offers cutouts from 90mm to 255mm across Cyclone, Grace, Miracle, and UFO series. Our products cover different power levels, protection ratings, and installation needs for flexible commercial lighting solutions. Contact us for more product information and technical support.
