Quick Answer

When choosing ceiling recessed lights, focus on cutout size, heat sinking, protection rating, and efficacy.IMIGY Lighting offers cutouts from 90mm to 255mm across multiple series including Cyclone, Phoenix Slim, Legend, and Grace, meeting diverse commercial and residential needs. Our downlights feature aluminum or thermal conductive plastic-coated aluminum housing for excellent heat sinking, with IP20 to IP64 protection ratings. As a professional lighting manufacturer, we also offer Sofing and Floria ceiling light series for complete commercial lighting solutions.

Key Takeaways

· IMIGY offers cutouts from 90mm to 255mm, a professional ceiling recessed lights manufacturer

· Cyclone series features aluminum housing for excellent heat sinking, supports single CCT or 3CCT

· Our Sofing series ceiling lights offer IP64 protection, a quality ceiling mounted led lights choice

· As a ceiling mounted light brand, products cover recessed and surface mounting methods

· Floria series as ultra-slim ceiling mounted lights is only 62mm thin for limited ceiling heights

· Grace and Wave series feature thermal conductive plastic-coated aluminum housing, quality ceiling recessed downlight options

Product Series Overview

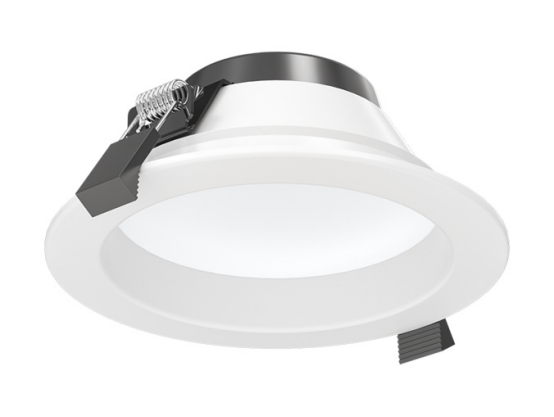

1. Cyclone Downlight Series

The Cyclone series features aluminum housing for excellent heat sinking and supports 3000K, 4000K, and 6000K CCT switching. Uses an external isolated driver for variable dimming methods. A professional ceiling recessed downlight choice. L70 lifespan reaches 59,000 hours, IP20 rating, IK07 impact rating.

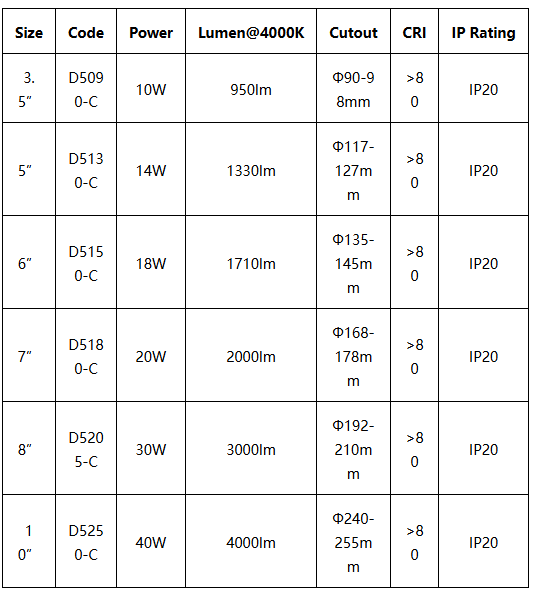

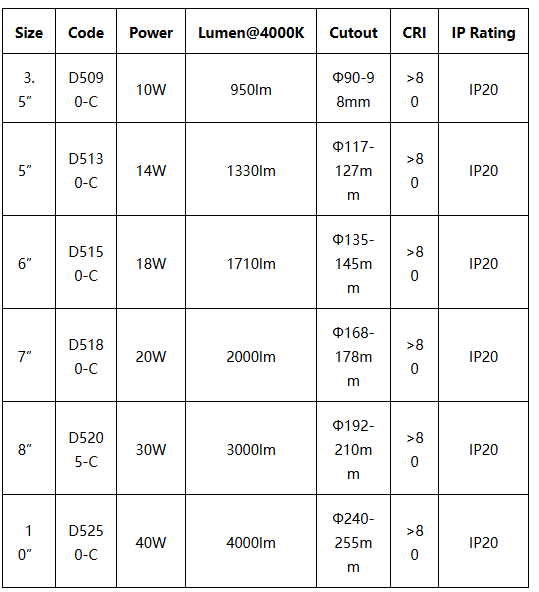

Full Series Parameters:

2. Grace Downlight Series

The Grace series features thermal conductive plastic-coated aluminum housing with V-0 flame rating. Built-in non-isolated driver, integrated design with optional Triac dimming and plastic widened cover. Single CCT 3000K, 4000K, and 6000K available. L70 lifespan reaches 85,000 hours.

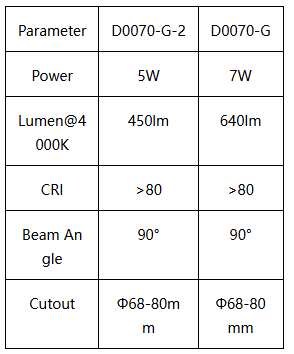

3” Model Parameters:

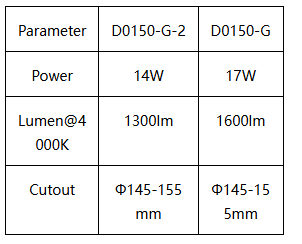

6” Model Parameters:

3. Legend Downlight Series

The Legend series features aluminum housing supporting recessed and surface installation. Uses an external isolated driver for variable dimming methods. L70 lifespan reaches 85,000 hours. An economical ceiling recessed lights choice.

5” Models: D2130-C / D2130-C-TW – 15W, 1320lm, 60°, cutout Φ120-130mm.

8” Models: D2205-C-2 (28W, 2500lm) / D2205-C (35W, 3150lm), cutout Φ195-210mm.

Ceiling Light Recommendations

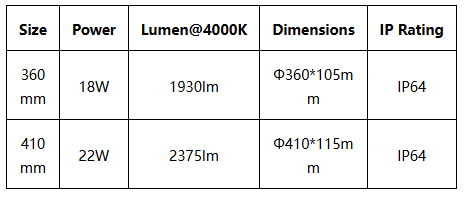

Sofing Ceiling Light Series

The Sofing series features a PMMA cover with metal base plate and edge-lit design for uniform lighting. A quality ceiling mounted light choice.

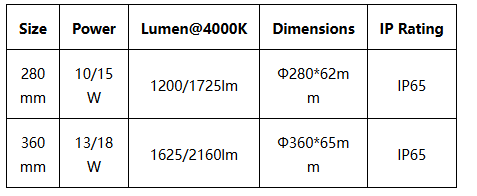

Floria Ceiling Light Series

The Floria series uses PP housing only 62mm thin with IP65 and IK08 ratings. A modern ceiling mounted lights representative.

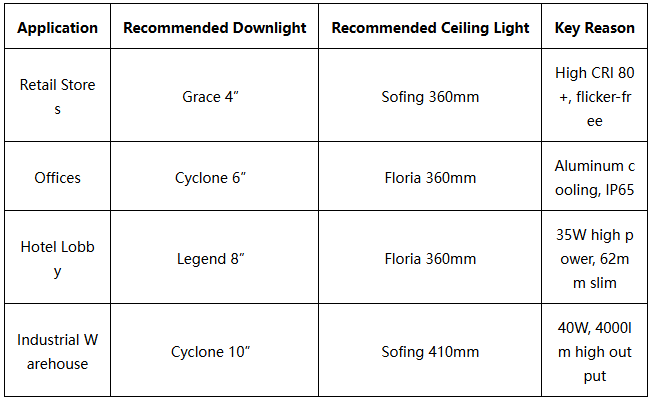

Application Guide

Procurement Checklist

When evaluating ceiling recessed lights, consider:

· Cutout Size: 90mm to 255mm options for ceiling matching

· Heat Sinking Material: Aluminum housing outperforms plastic for LED life

· Protection Rating: IP20 for dry areas, IP64 for damp environments

· Dimming: Triac dimming and variable methods by changing drivers

· Warranty: Cyclone series 5-year warranty, Grace series corresponding service

FAQ

Q1: As a Ceiling recessed downlight supplier, what cutout sizes do you offer? We offer complete sizes from 3.5” (Φ90-98mm) to 10” (Φ240-255mm), covering 6 common specifications for different ceiling structures.

Q2: How to choose heat sinking material for Ceiling recessed lights? Aluminum housing suits high-power applications like Cyclone series. Thermal conductive plastic-coated aluminum suits medium-low power like Grace series.

Q3: What IP rating for Ceiling mounted led lights? IP20 for dry indoor offices. IP64 recommended for damp environments like retail stores.

Q4: What installation types for Ceiling mounted light? Recessed for downlights, surface or wall for ceiling lights. Legend series supports both recessed and surface installation.

Q5: What lifespan for Ceiling mounted lights? Cyclone series L70 lifespan 59,000 hours, Grace series 85,000 hours. Based on 8 hours daily use, this equals 20 to 29 years.

As a professional ceiling recessed lights manufacturer, IMIGY Lighting offers cutouts from 90mm to 255mm across Cyclone, Grace, and Legend downlight series. We also provide Sofing and Floria ceiling mounted led lights series for complete commercial lighting solutions. Contact us for more product information and technical support.
