In public buildings, shopping malls, offices, and hospitals, Emergency safety light is a life-critical element on every escape route. IMIGY Lighting understands that standard compliance for public escape is non-negotiable, offering the Voyager Emergency Blade Exit Sign and Guard Fit Emergency Downlight—both designed to meet international certification requirements. The Voyager series features LiFePO₄ lithium battery and smart self-test emergency board, providing a 30-meter viewing distance, 1W emergency power, and ≥3-hour backup duration to ensure clear egress guidance. The Guard Fit Emergency Downlight delivers IP65 high protection and LiFePO₄ battery system, with emergency lumen output up to 320lm and 3-hour runtime, ideal for corridors, lobbies, and semi-outdoor areas. As a reliable Commercial LED emergency light manufacturer, IMIGY ensures all products carry CE, CB, and RoHS certifications, with replaceable battery design for lower long-term maintenance. Every fixture undergoes rigorous testing to guarantee instant activation upon power failure, making them a trustworthy Emergency safety light. Whether serving as an Indoor rechargeable emergency light for continuous standby or as an Industrial emergency lighting fixture for demanding environments, IMIGY products are mounted using mechanical fixing—screws or spring clips securely lock to ceiling or wall.Choose IMIGY for certified peace of mind.

Key Points

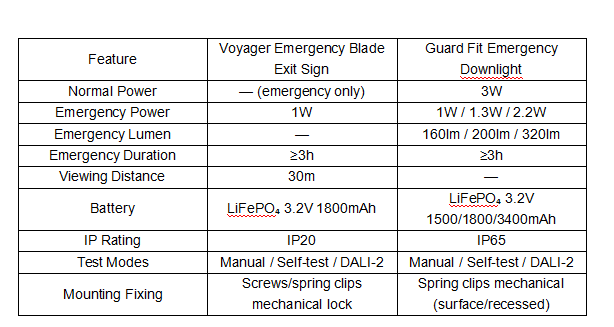

Voyager Emergency Blade Exit Sign: PC housing with PET legend, input 5W, emergency power 1W, LiFePO₄ 3.2V 1800mAh battery, charge time ≤24h, discharge ≥3h, CCT 6500K, CRI≥80, 30m viewing distance, IP20, test modes—manual/self-test/DALI-2, Class II, 5-year warranty.

Guard Fit Emergency Downlight: PC material, 220-240VAC input, normal power 3W, emergency power 1/1.3/2.2W, emergency lumen 160/200/320lm, LiFePO₄ 3.2V 1500/1800/3400mAh battery, charge time ≤24h, discharge ≥3h, CCT 6500K, IP65, Class II, interchangeable round/oval lens, white/black finish, surface or recessed mounting (spring clip mechanical lock).

Standard Compliance: Both products are CE, CB, RoHS certified, meeting international emergency lighting and egress standards. Voyager's 30m viewing distance satisfies EN 1838 and similar codes for exit signs. Guard Fit's IP65 rating and 3-hour backup suit damp/dusty environments as an Emergency light. As an Indoor rechargeable emergency light, batteries auto-charge during normal power and switch within 0.5 seconds upon outage.

In public escape applications, Voyager acts as the Emergency safety light providing clear directional guidance, while Guard Fit serves as an Emergency light delivering backup ambient illumination. Together they form a compliant system for any Commercial LED emergency light project—malls, hotels, offices—or as Industrial emergency lighting fixture for factories and warehouses.

Q1: Why is standard compliance critical for emergency safety lights? How does IMIGY ensure it?

Public escape lighting involves life safety, with strict international standards (IEC, EN 1838, GB 17945). Non-compliant fixtures may fail at critical moments—insufficient brightness, inadequate duration, or delayed switchover. IMIGY's Voyager and Guard Fit are designed from the ground up to meet these requirements: Voyager's 30m viewing distance ensures exit signs remain legible even in smoke or low light; Guard Fit's IP65 protection guarantees stable operation in damp environments. Both feature smart self-test that periodically checks battery and circuit status, with alarm on fault. As core Emergency safety light products, they use LiFePO₄ batteries (>1000 cycles, field-replaceable) and carry CE/CB certification for Commercial LED emergency light projects.

Q2: How do Voyager and Guard Fit divide roles in public escape scenarios?

Voyager Emergency Blade Exit Sign: For exits, corridor intersections, stairway entrances needing clear direction indication. The 30m viewing distance allows long-range recognition in large spaces.  Ultra-slim blade design (8mm or 3mm) maintains aesthetics while using mechanical lock.

Guard Fit Emergency Downlight: For areas requiring backup ambient light—lobbies, corridors, offices, restrooms. In normal mode it functions as a 3W downlight; upon power failure it switches to emergency mode, delivering up to 320lm covering ~10-15m² of escape path. IP65 allows semi-outdoor or frequent-wash areas. Interchangeable round/oval lens adapts to open or corridor spaces.

Together, they create a system meeting Industrial emergency lighting fixture standards: Voyager indicates direction, Guard Fit illuminates the path. All mounting is mechanical.

Q3: How to ensure long-term reliability and easy maintenance?

Installation: Voyager fixes via base screw holes with expansion bolts or self-tapping screws to wall/ceiling. Guard Fit pushes into ceiling opening; spring clips automatically lock against ceiling edge. Both purely mechanical—no adhesives, ensuring long-term stability.

Maintenance: Both feature replaceable batteries. Voyager's face panel removes by hand for battery module access—no tools needed. Guard Fit's battery is also accessible from below. Quarterly discharge testing is recommended. LED sources last 50,000+ hours. Smart self-test (manual/self-test/DALI-2) simplifies inspection compliance. As Indoor rechargeable emergency light, standby power consumption is minimal, making long-term ownership cost-effective.

Conclusion

IMIGY's Voyager Emergency Blade Exit Sign and Guard Fit Emergency Downlight deliver uncompromising standard compliance, reliable LiFePO₄ battery backup, and purely mechanical installation—fully meeting public escape safety needs. Voyager provides clear Emergency safety light guidance with 30m visibility; Guard Fit serves as a robust Emergency light with IP65 protection and 3-hour backup. Whether as Commercial LED emergency light for commercial complexes or Industrial emergency lighting fixture for industrial facilities, IMIGY offers certified quality and maintainable design. Choose IMIGY: let standard compliance be your strongest safeguard for public escape. When the lights go out, we illuminate your way to safety.

Further product and certification details are available at https://www.imigyled.com/.

FAQ

Q: What standard determines Voyager's 30m viewing distance?
A: The 30m distance complies with EN 1838 and international egress sign standards, ensuring legibility under low ambient light.

Q: Guard Fit normal power is only 3W—can it provide adequate everyday lighting?
A: Guard Fit is designed primarily as an emergency fixture; its normal mode provides basic illumination or constant-on indication. Its core function is to automatically deliver 160-320lm emergency light for ≥3 hours during outages. For higher normal illumination, pair with regular downlights.

Q: How to replace the battery at end of life?
A: Both models support field battery replacement. Voyager: open the face panel to access the battery module. Guard Fit: replace battery from the fixture bottom. Recommended replacement every 3-4 years or as indicated by self-test alerts.
