Flame Track light- TS0170-A

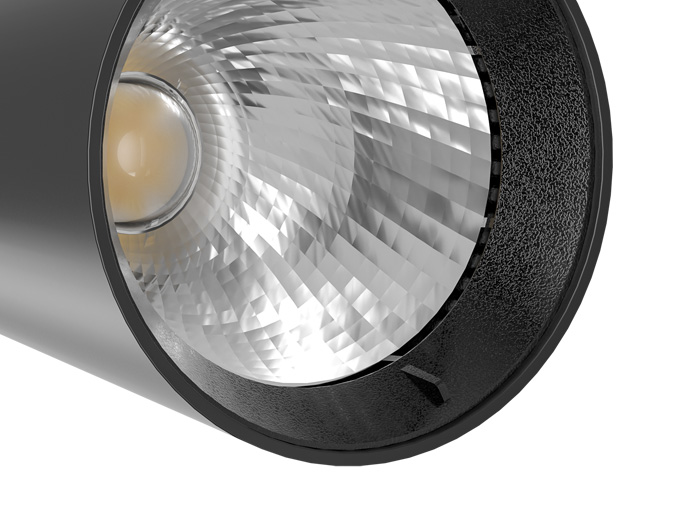

Thermal conductive PA housing with built-in ALU cooler, V-0 flame rating.

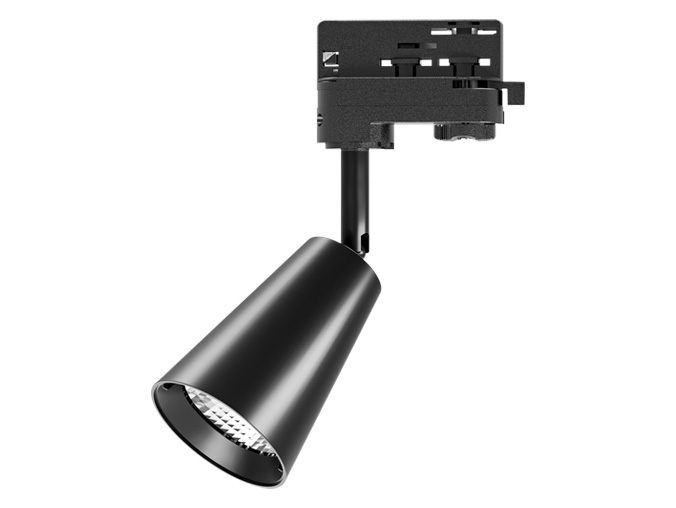

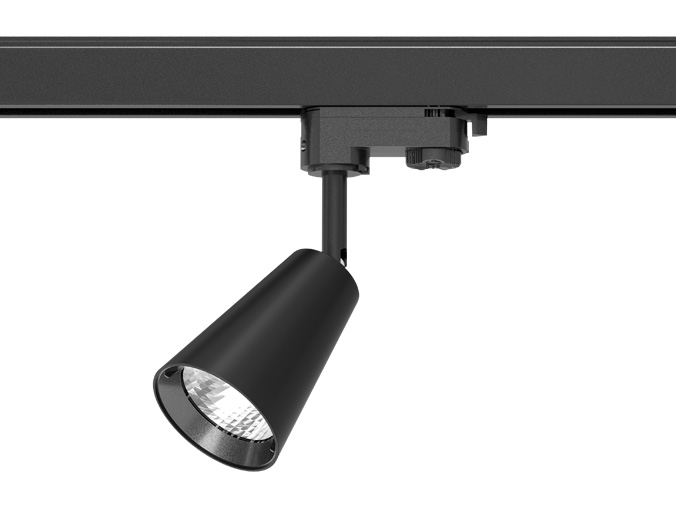

Conical and cylindrical shape design.
Conical and cylindrical shape design.
7W 760lm 109lm/W CRI>80 24°/40°
| Code | TS0170-A |
|---|---|
| Power | 7W |
| Input | 220-240Vac 50/60Hz |
| Color Temp | 4000K |
| Lumen@4000K | 760lm |
| IP Rating | 20 |
| CRI | ＞80 |
| Beam Angle | 24°/40° |

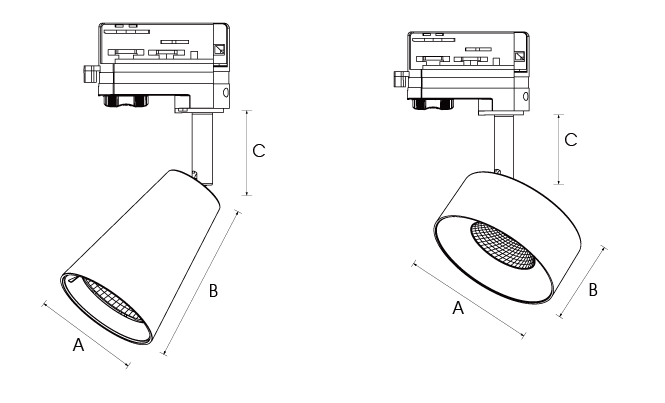

| Size | Φ70*100*100mm |
| Driver | Internal non-isolated driver |

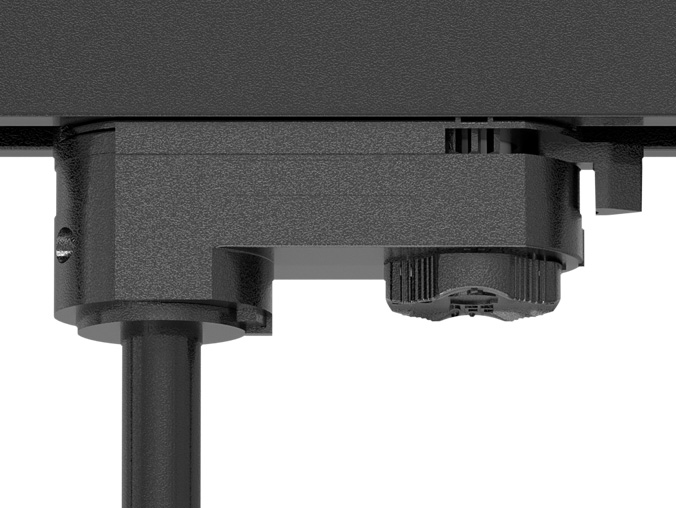

Thermal conductive PA housing with built in ALU cooler. SMD LED, single CCT, 3000K or 5700K are available. Conical shape UGR<19, cylindrical shape UGR<22. L70 to 55000hrs. Rotatable angle 360° horizontally and 90° vertically. Three phases four wires & single phase three wires adapter available. White and black housing for option.
"
