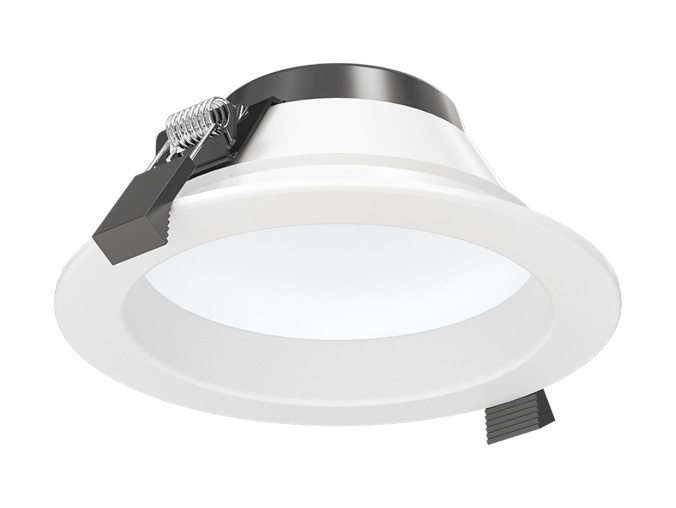

Cyclone Downlight 10''- D5250-C

IMIGY Lighting's Cyclone downlight offers superior performance with its aluminum housing for excellent heat sinking. This sensor downlight supports recessed installation and variable dimming methods through driver changes. Options include triac, dali, microwave, and emergency features, making it an ideal choice among recessed emergency light solutions.

D5250-C

D5250-C-TW

40W 4000lm 100lm/W CRI＞80 90°

Code	D5250-C
Power	40W
Input	220-240Vac 50/60Hz
Color Temp	4000K
Lumen@4000K	4000lm
Cutout(mm)	Φ240-255mm
IP Rating	20
IK Rating	07
CRI	＞80
Beam Angle	90°
Driver	Outside isolated driver

Code	D5250-C-TW
Power	40W
Input	220-240Vac 50/60Hz
Color Temp	3CCT
Lumen@4000K	3880lm
Cutout(mm)	Φ240-255mm
IP Rating	20
IK Rating	07
CRI	＞80
Beam Angle	90°
Driver	Outside isolated driver

Recessed installation.

Single CCT or 3CCT for option.

Aluminum housing, excellent heat sinking.

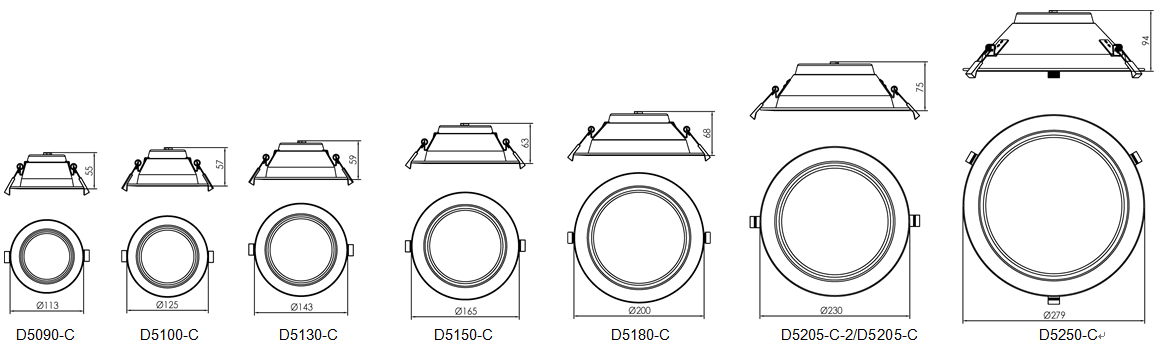

Whole series available from 3.5 ",5"，6"，7"，8"，10.

L70 to 59000hrs.

Variable dimming methods by changing drivers.

Driver outside.
