LED Down Lights

Forge Downlight Module（Reflector) 7W, 10W- D26050-ABR-7W

Forge LED Downlight Module: One module works with various trims, fewer SKUs & lower inventory pressure- a flexible modular downlight designed for easy installation, precise beam control and multiple lighting applications.

7W 700lm CRI＞90 17°/24°/36°/60°

Code	D26050-ABR
Power	7W
Input	220VAC-240VAC
Color Temp	3000K/4000K/5700K
Lumen@4000K	700lm
IP Rating	IP20
CRI	＞90
Beam Angle	17°/24°/36°/60°

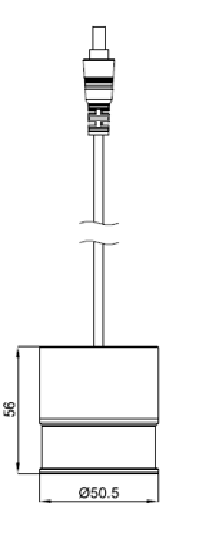

Size	50.5*56mm
Current	180mA
LED	COB

Code	D26050-ABR-TW
Power	7W
Input	220VAC-240VAC
Color Temp	3CCT(3000K/4000K/5700K)
Lumen@4000K	650lm
IP Rating	IP20
CRI	＞90
Beam Angle	17°/24°/36°/60°
Size	50.5*56mm
Current	180mA
LED	COB

Code	D26050-BBR
Power	10W
Input	220VAC-240VAC
Color Temp	3000K/4000K/5700K
Lumen@4000K	930lm
IP Rating	IP20
CRI	＞90
Beam Angle	17°/24°/36°/60°
Size	50.5*56mm
Current	250mA
LED	COB

Code	D26050-BBR-TW
Power	10W
Input	220VAC-240VAC
Color Temp	3CCT(3000K/4000K/5700K)
Lumen@4000K	840lm
IP Rating	IP20
CRI	＞90
Beam Angle	17°/24°/36°/60°
Size	50.5*56mm
Current	250mA
LED	COB

Modular Design-Aluminum housing for excellent heat dissipation.

Integrated Thermal & Optical Design.

Multiple Trims Compatibility.

Smooth Beam Adjustment.

17° / 24° / 36° / 60° Beam Angles.

COB Light Source.

External Isolated Driver.

3000K / 4000K / 5700K CCT Options.

5-year warranty.
